From conception to the final bronze sculpture - The lost wax casting process

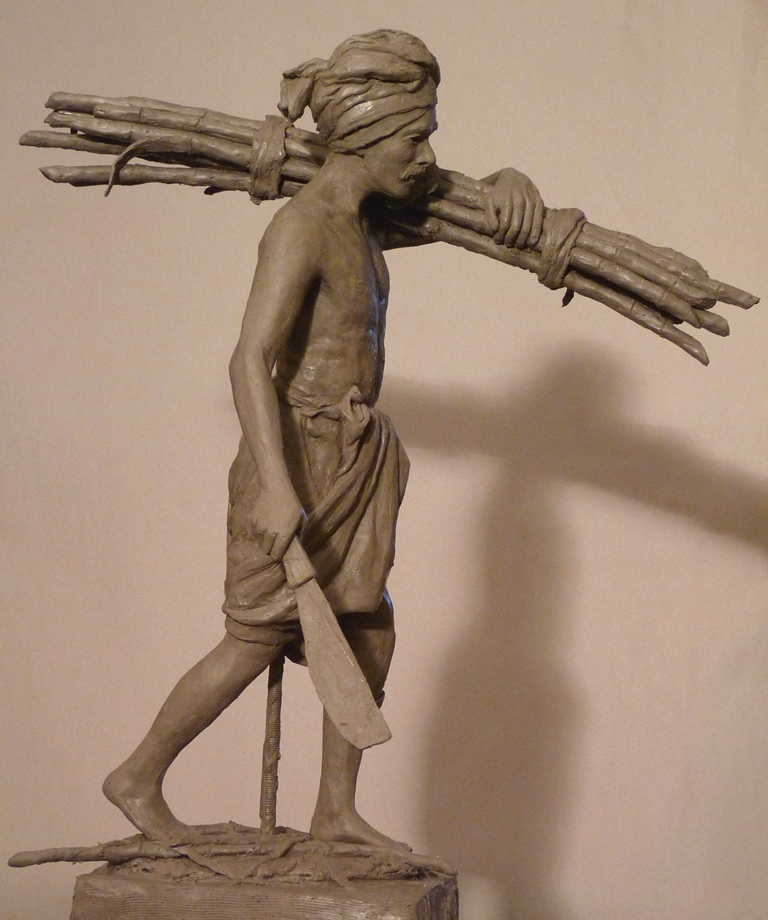

A maquette is essentially a small study for a larger sculpture. When I have an opportunity to create a large sculpture I will create a maquette to learn more about my subject and the pose or structure that the final work will take. This is then shown to the client who has commissioned this large work so they may get a good idea of what the final work will look like. At this stage changes are easy to make as the armature (skeletal structure) from such a small sculpture (up to 50cm height) is flexible and therefore easily moved about. From this study I will 'scale-up' for the larger work, making the creation of the armature easier with something accurate to measure from.

I usually work with a wax (microcrystalline wax, paraffin wax, dye) or plasticene (fine clay powder (ball clay), mixed into melted microcrystalline wax and some petroleum jelly), made myself. This is put onto a simple wire armature, and built up and modelled until I am happy and ready to send it to the foundry or work from when scaling up for a larger work.

I may cast the maquette into bronze, to be sold as a limited edition.

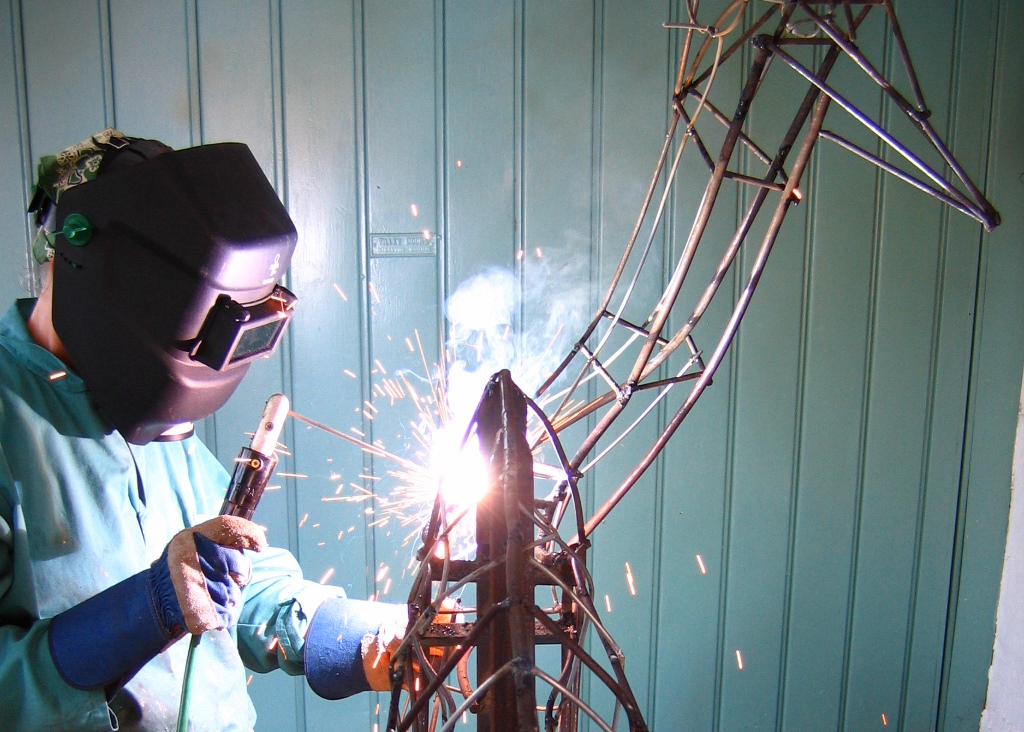

Welding the armature

The armature is the structural "skeleton" of a sculpture. It needs to be strong enough to support the modelling materials. It also needs to be accurately measured from the maquette as it is not easy to make changes to it at a later stage.

Welding isn't difficult. All that is required are a few learned skills, lots of protective wear, the right equipment (small welders are relatively inexpensive and easy to use) and patience, liberating the artist to make strong armatures of any size.

Finishing the armature

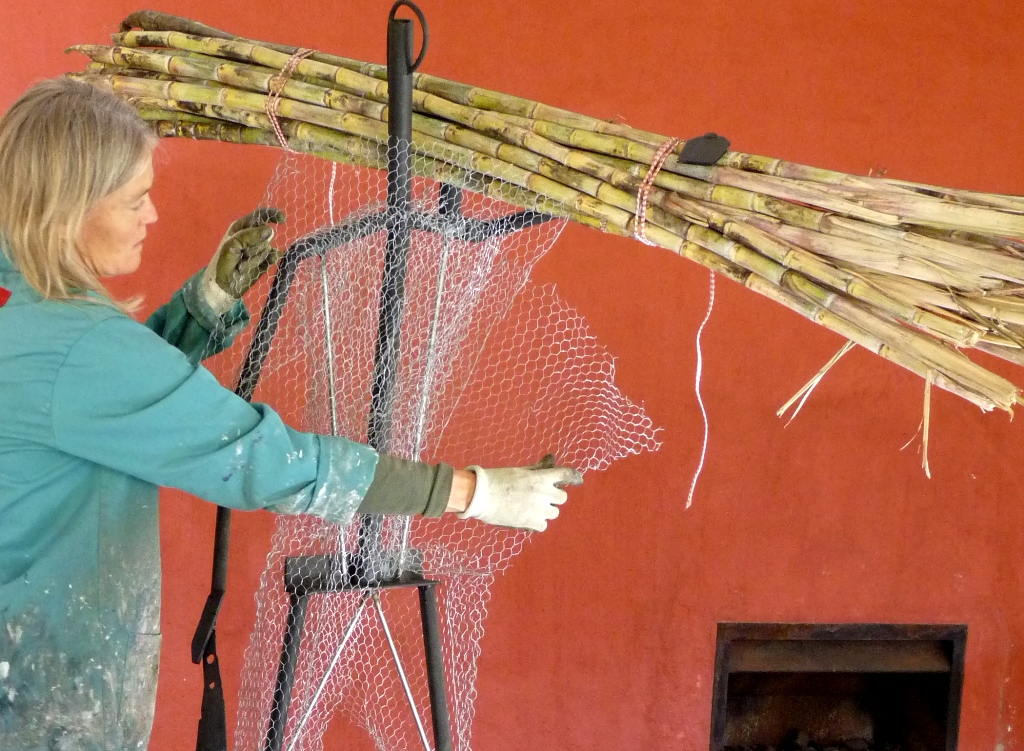

The metal armature is covered in chicken wire. This will be the final support for the modelling materials. Tin snips, long-nosed pliers and silicon covered gloves are essential tools.

Starting the modelling process

When I work on a large scale I usually use Rhyolite (also known as cretestone) or plaster-of-Paris as an inexpensive support before I apply Plasticene.

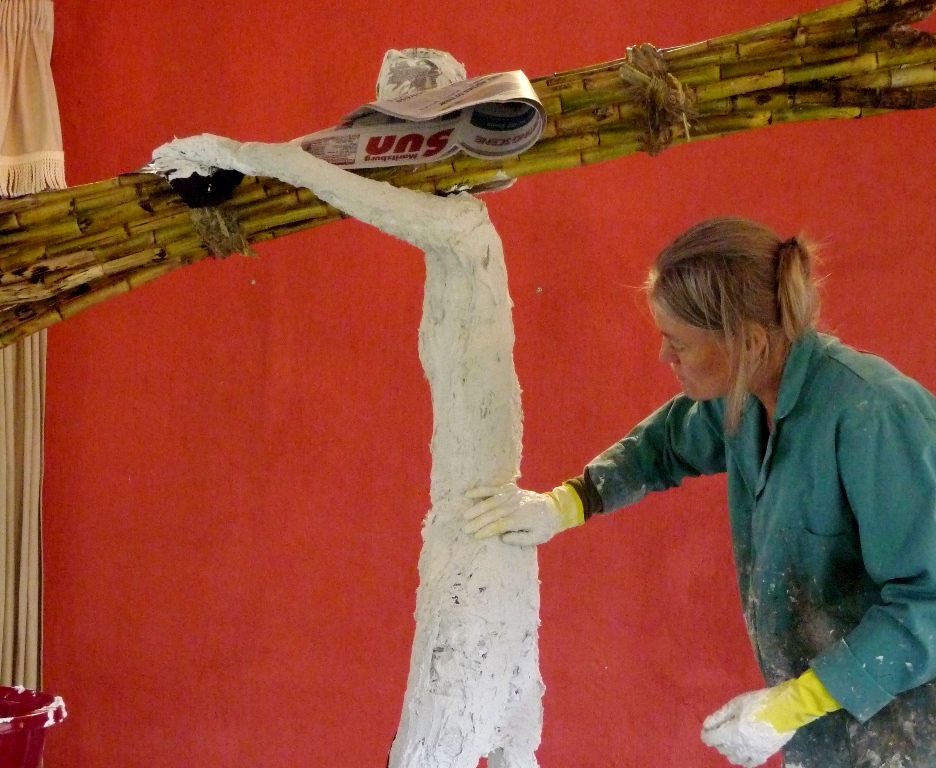

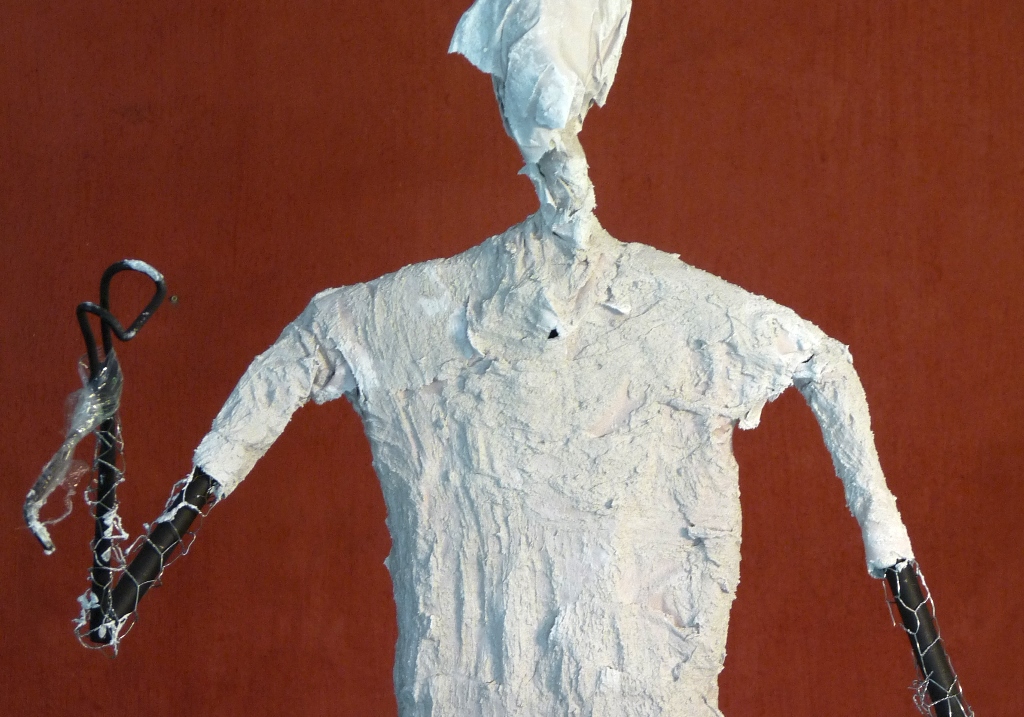

I cover strips of newspaper with mixed Rhyolite, and apply this to the chicken wire so that it locks onto it, forming a skin.

Building up the sculpture

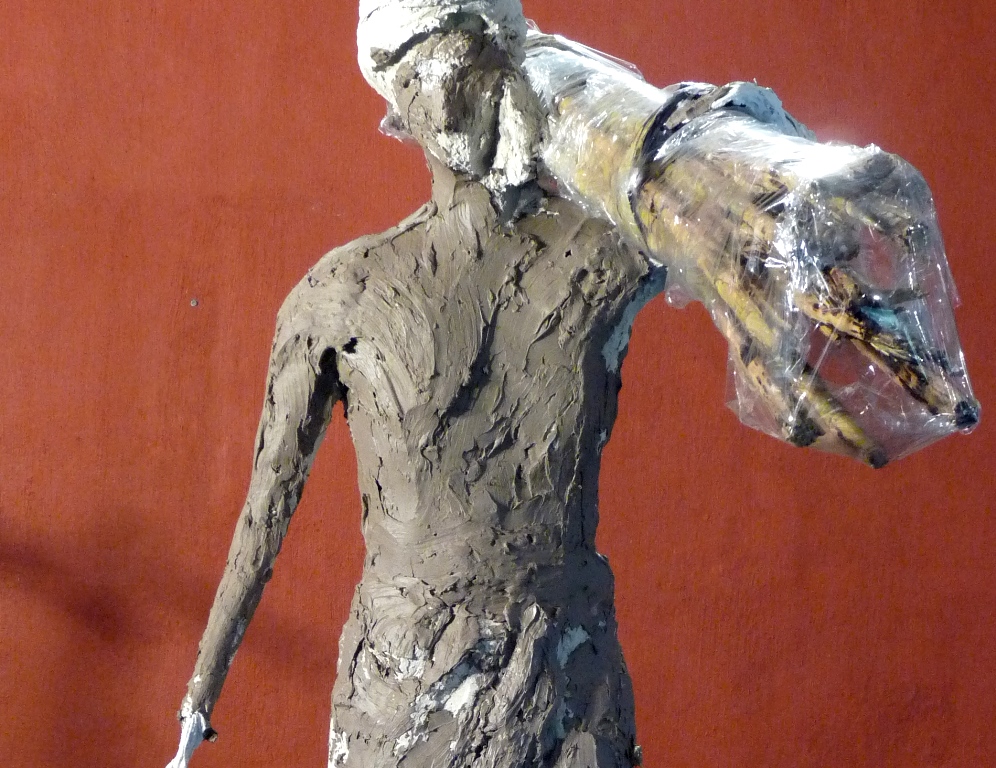

When it is hardened I continue to work more rhyolite onto this skin, building up layers and beginning to shape the sculpture, sometimes carving back if required.

Adding detail using plasticene

When this form is dry I start working in the details with plasticene. I heat up the plasticene, and apply it while it is very soft and warm, scooping handfuls onto the surface, building up the form.

As I work I continually refer to the maquette to make sure that this larger sculpture is a direct copy.

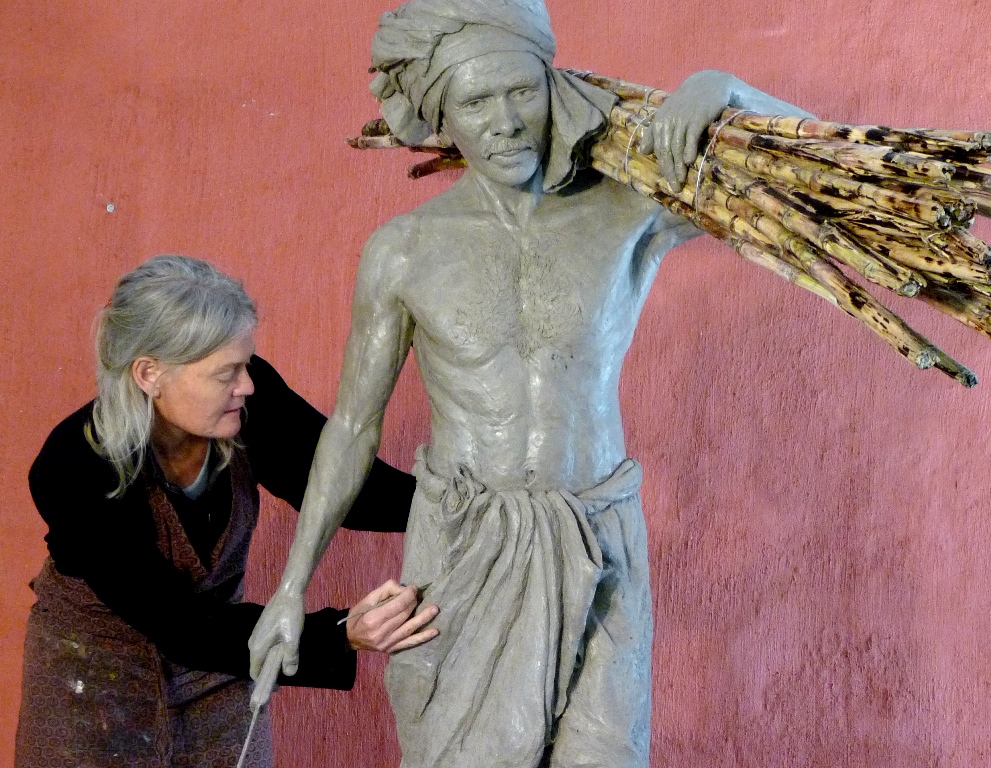

The final details

The details are only worked on at the end when the basic shapes are confirmed to be accurate, there is much – putting on and then taking off – of the surface details, until I am satisfied.

Dividing up the sculpture for mould pieces

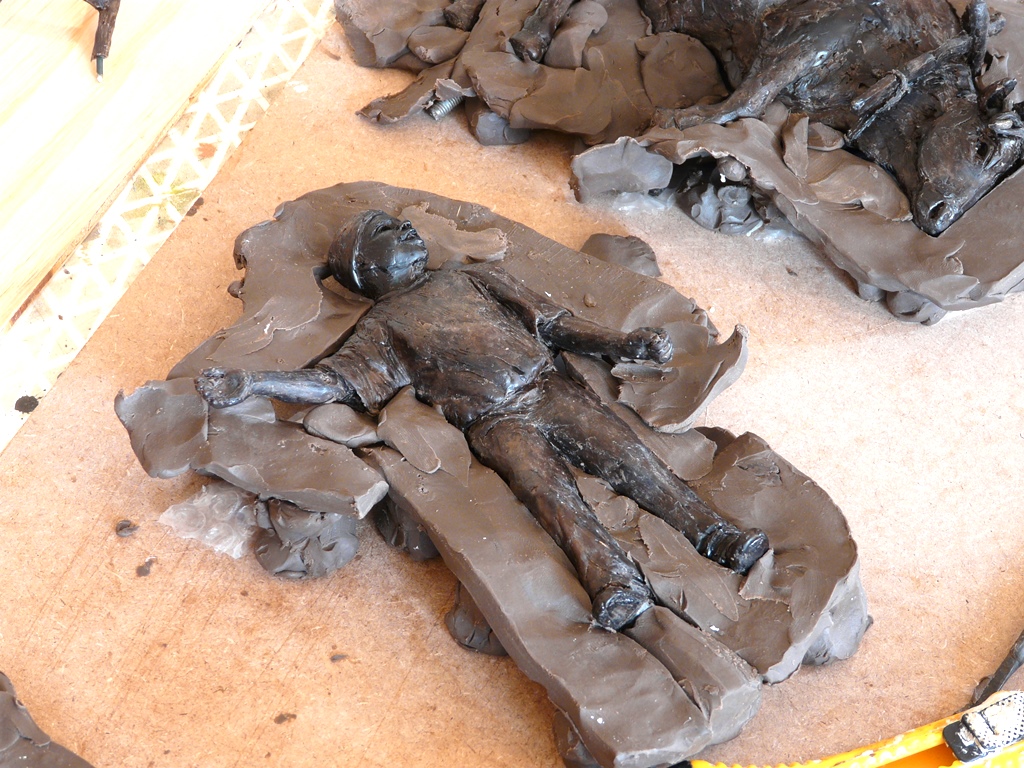

The sculpture is divided into sections so that the pieces are smaller and easier to manage. The dividers or walls are made from plasticene and are carefully placed to aid the dismantling of the mould when finished.

Silicon Rubber

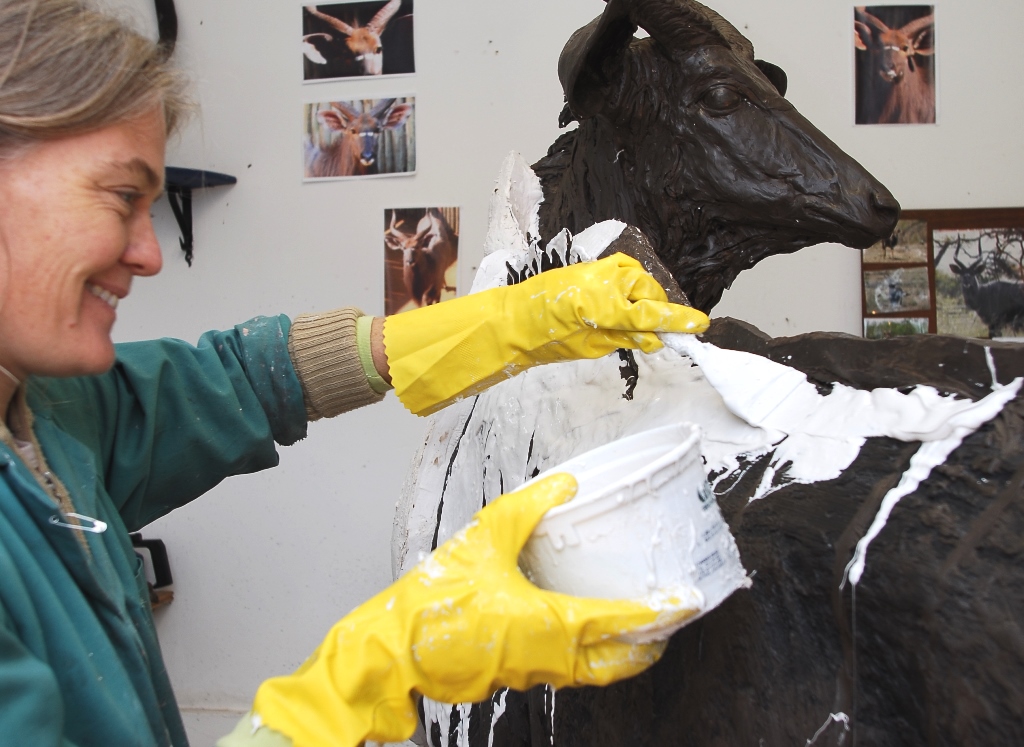

Silicon rubber is mixed with a catalyst. It is then put on to the surface of the sculpture, making sure no air bubbles form between the wax surface and the silicon. The rubber is used because it is flexible and will capture all details.

The cap

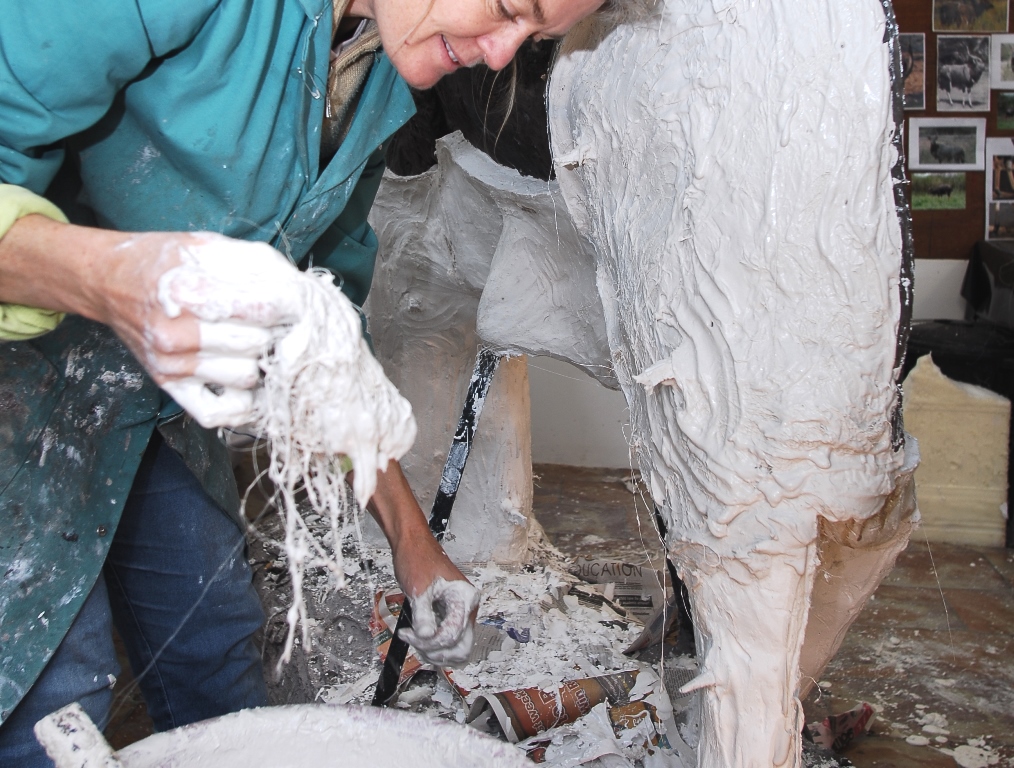

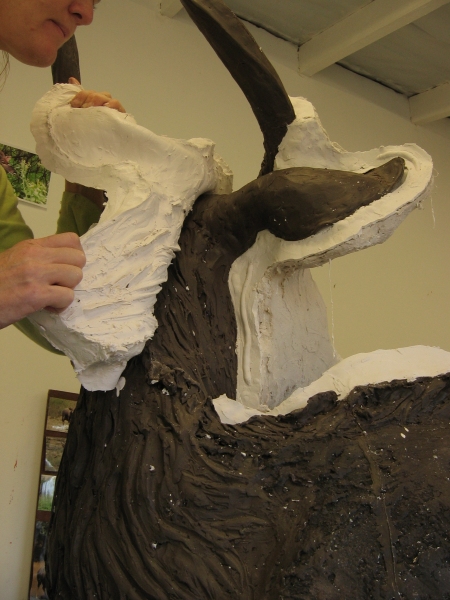

Plaster-of-Paris is then mixed with water and put over the silicon. Sisal is mixed with the plaster for re-enforcement.

Preparing the next section

The dividing walls are removed and new ones are carefully placed for the start of the next section.

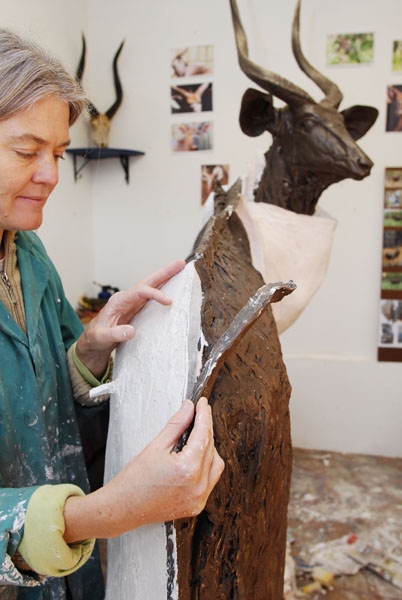

Removing the mould

When all the pieces have been covered in silicon and plaster, the 'plaster caps' can be removed and the silicon peeled off.

Preparing the wax copies

The lost wax process begins with the silicon mould being coated with a molten wax layer of about 4 - 5mm thick. It is carefully removed from the mould when cool.

Gating

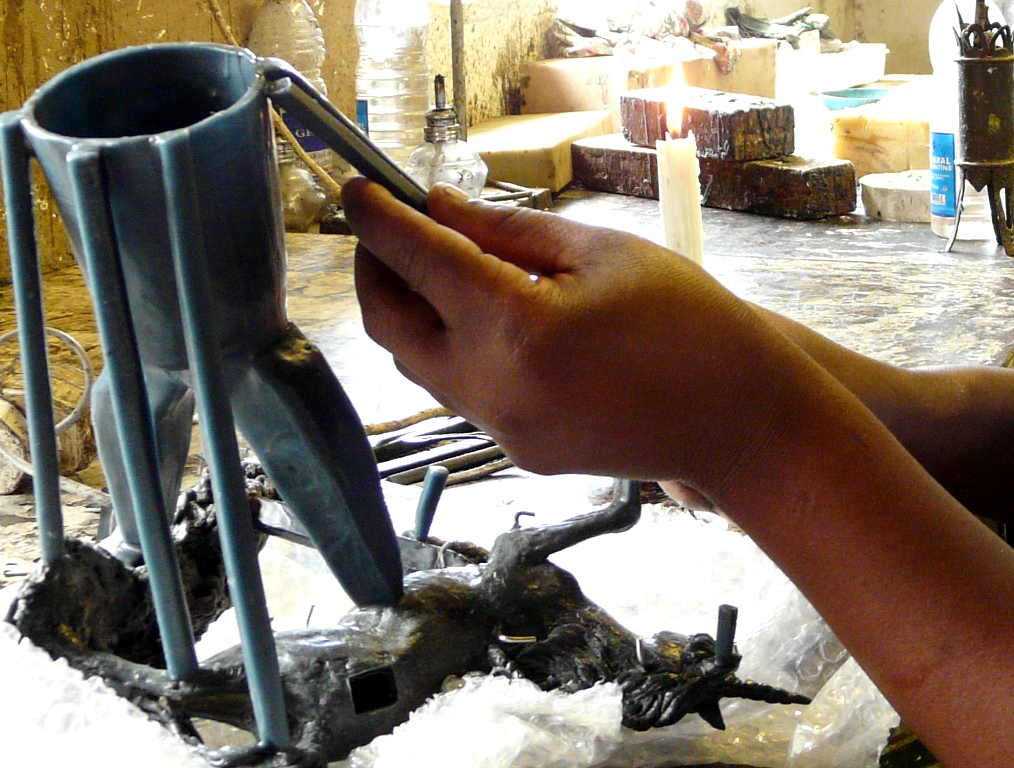

The sculpture is gated, with runners and risers made of wax, joined by heat to the hollow wax sculpture. (These will act as air vents in the bronze pouring stage).

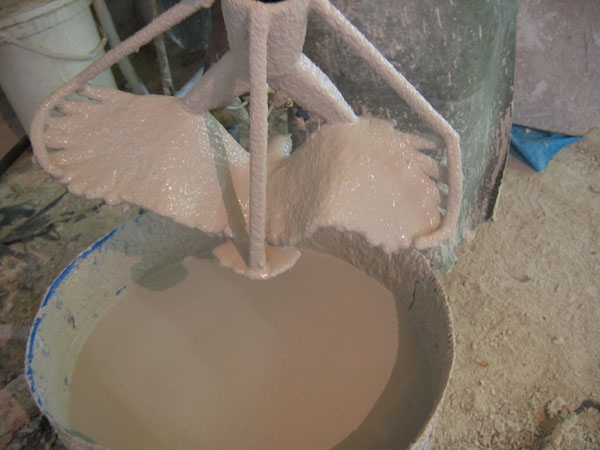

Dipping

The outer shell is created from layers of a ceramic shell which is strong enough to handle the heat of the bronze pouring. The shell consists of many layers of slurry and Shamot.

Shamot layer

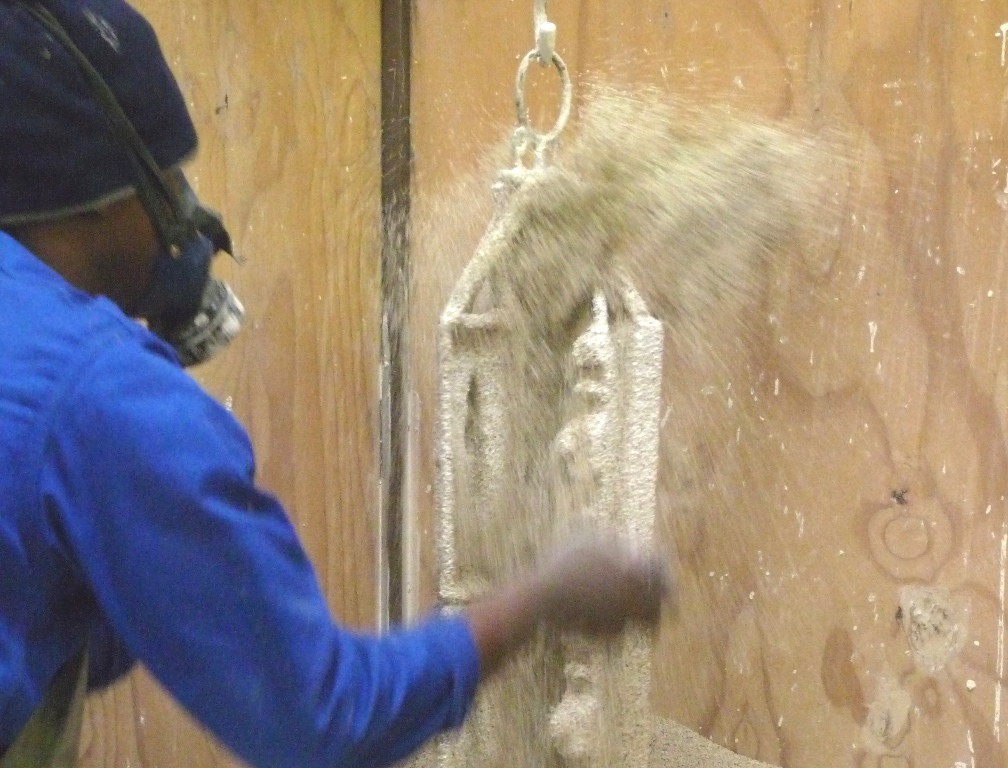

The course layer of shamot is thrown on to the slurry layer.

Drying the layers

Each layer is dried before the next layer is applied – this gives the final mould strength to handle the heat of the kiln and the pouring of the bronze.

Losing the wax

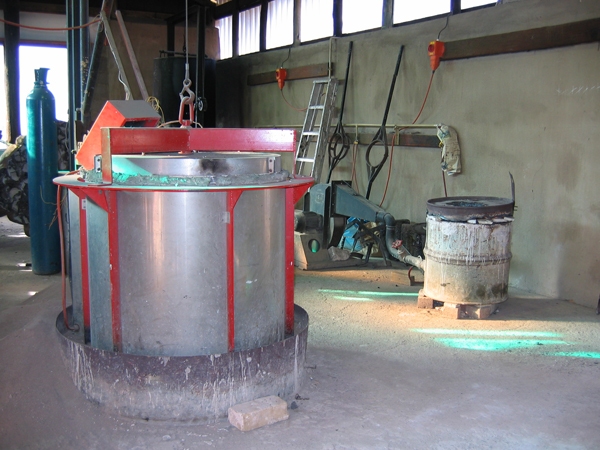

The completed mould covered sculpture is now put in the kiln, and heated until the wax pours out, leaving a hollow space.

Thus the name given to this process – the Lost wax casting process or Cire Perdue.

Pouring the bronze

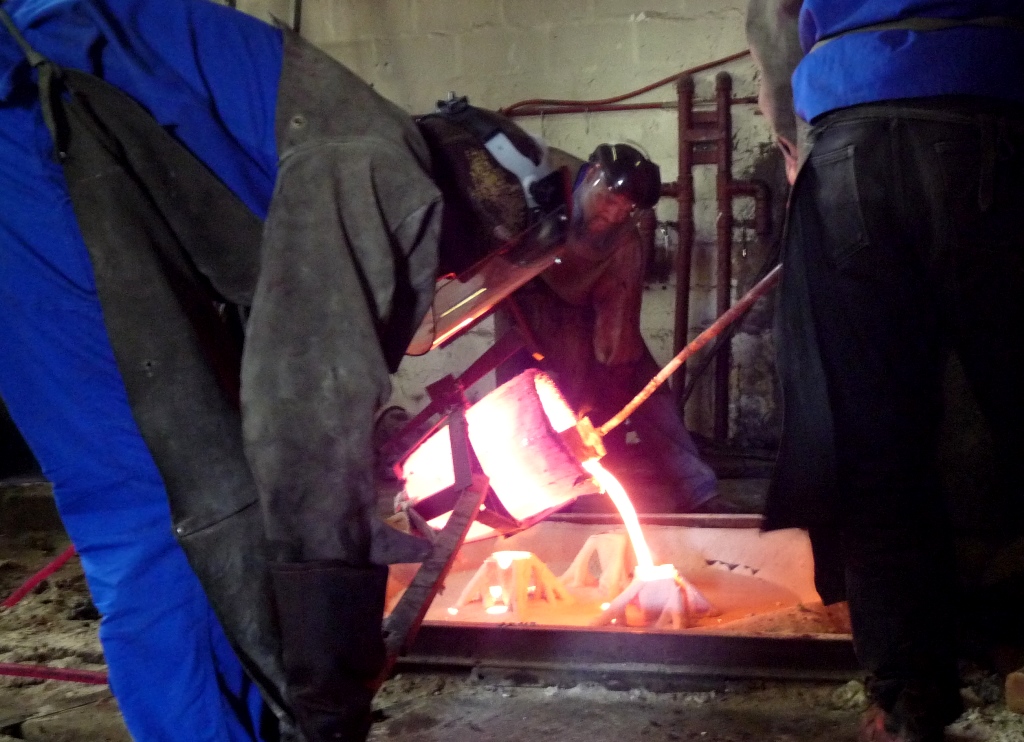

The hot, hollow mould is balanced in sand and the pouring cup placed upwards. Molten bronze, heated in a furnace is now poured in, filling the gap where the wax was with molten bronze.

Chipping off the shell

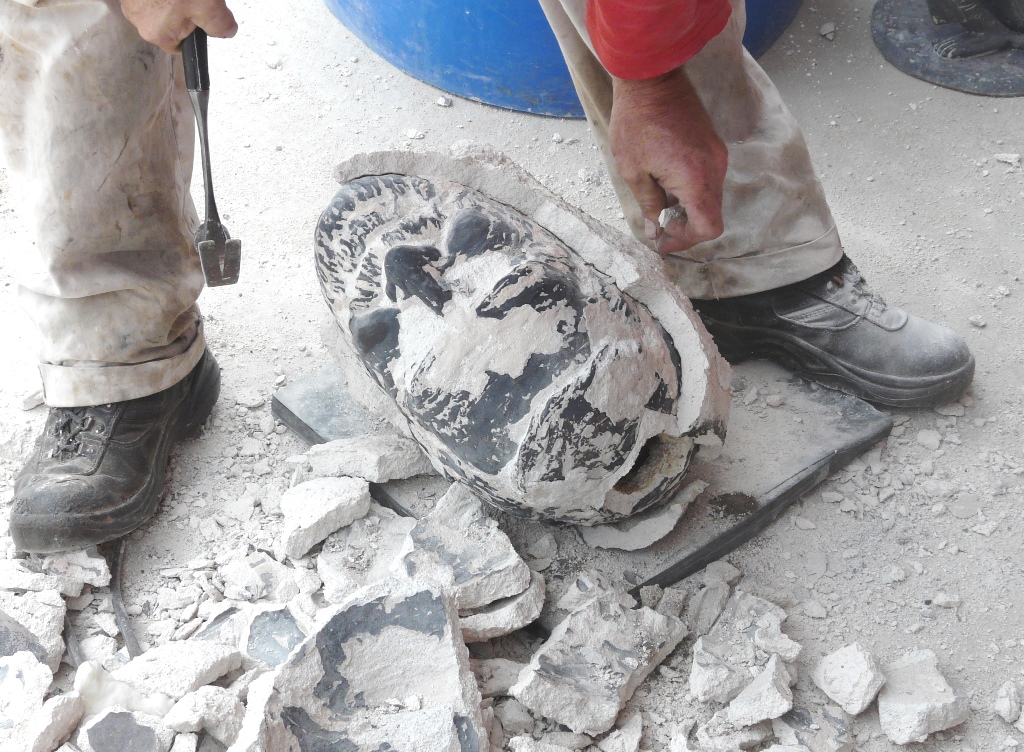

When cooled, the outer shell is chipped off.

Cutting off the runners and risers

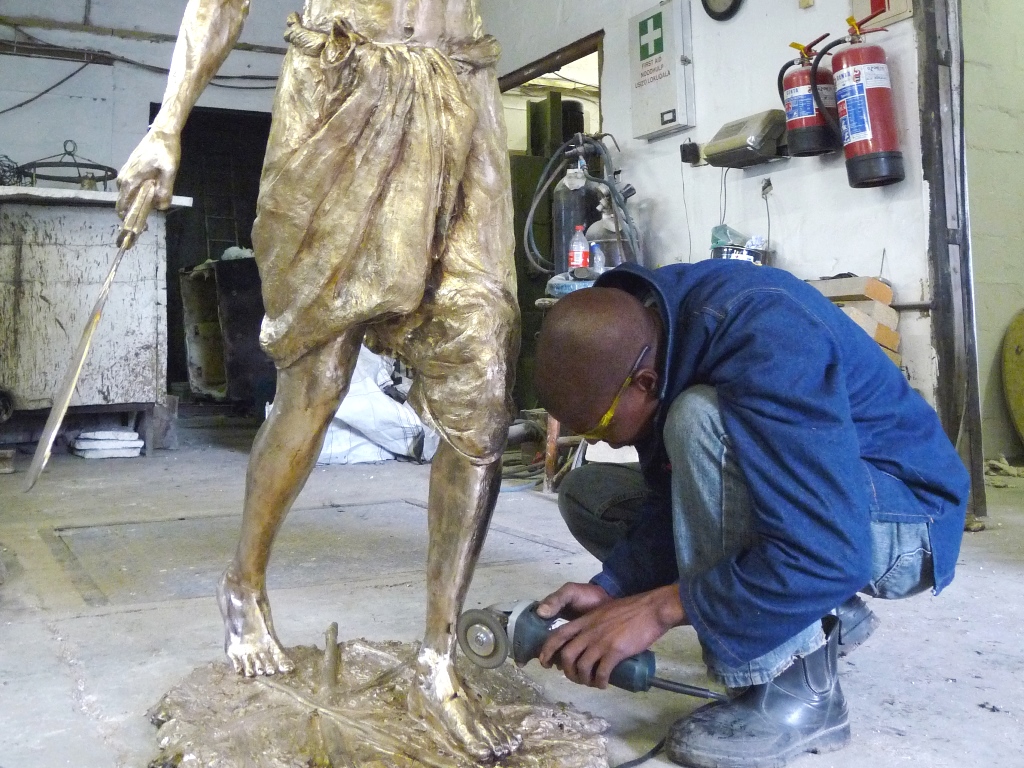

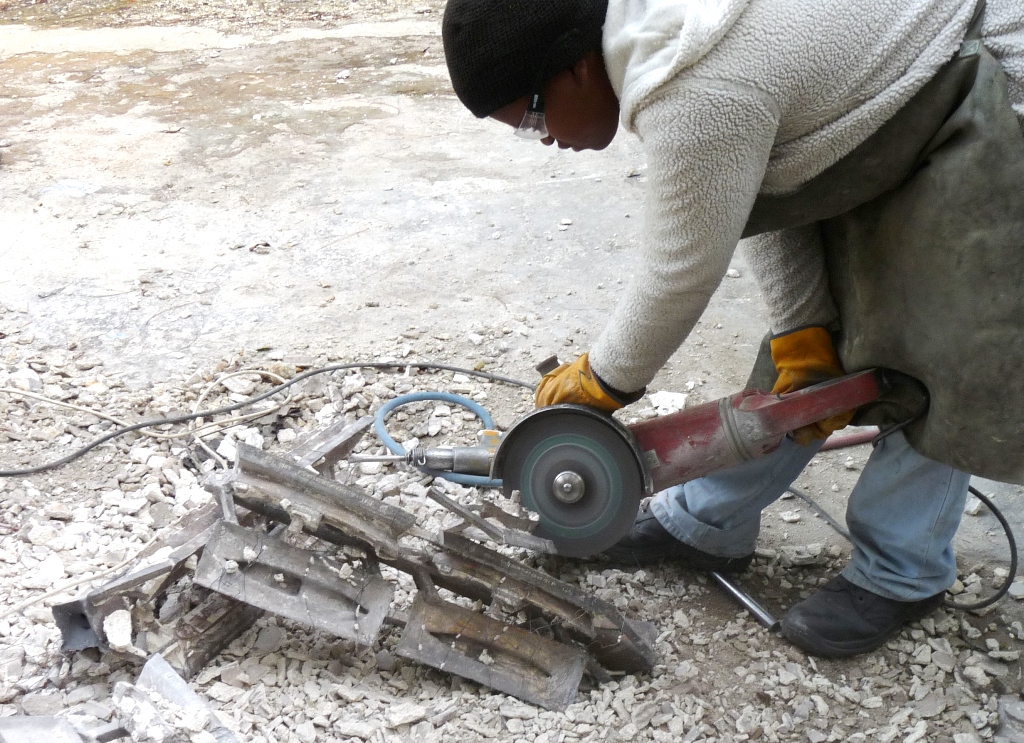

The runners and risers are cut off using an angle grinder and other tools, and the sculpture is sandblasted to remove any leftover shell.

Welding

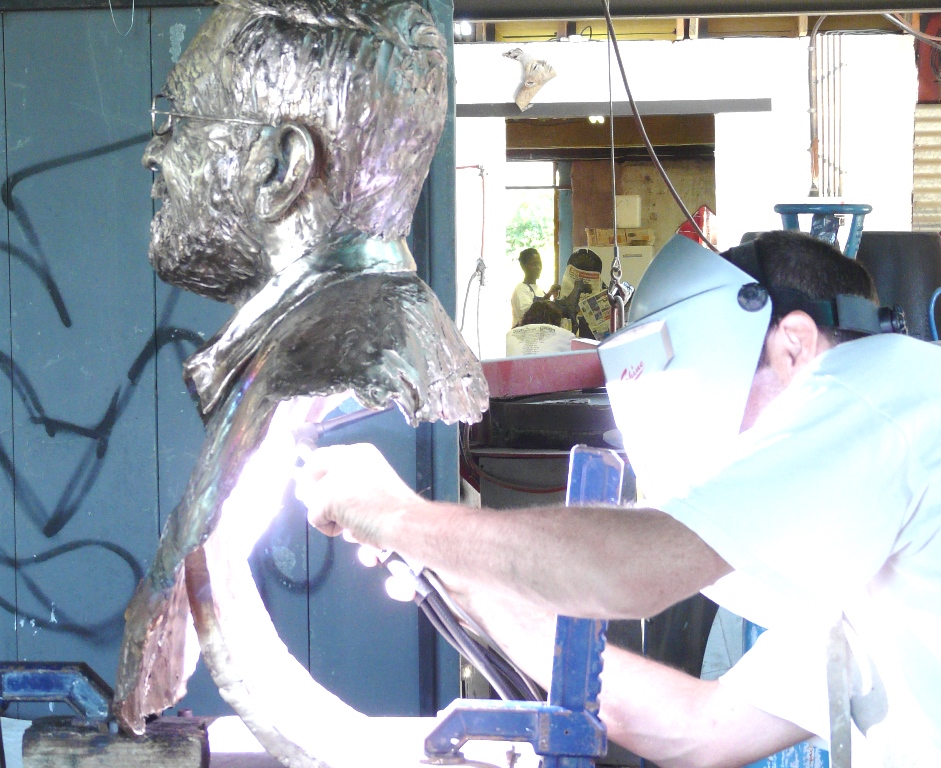

The skilled foundry staff weld the pieces of the sculpture together; fixing any problem areas created in the casting.

Sanding and polishing

The surface of the bronze is worked intensely – sanding and polishing to get the perfect surface.

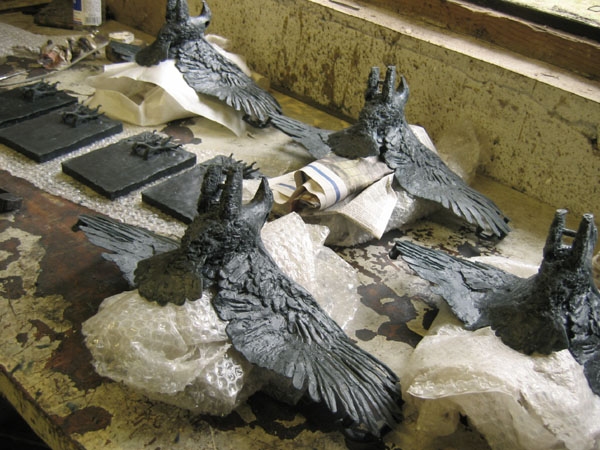

Patina

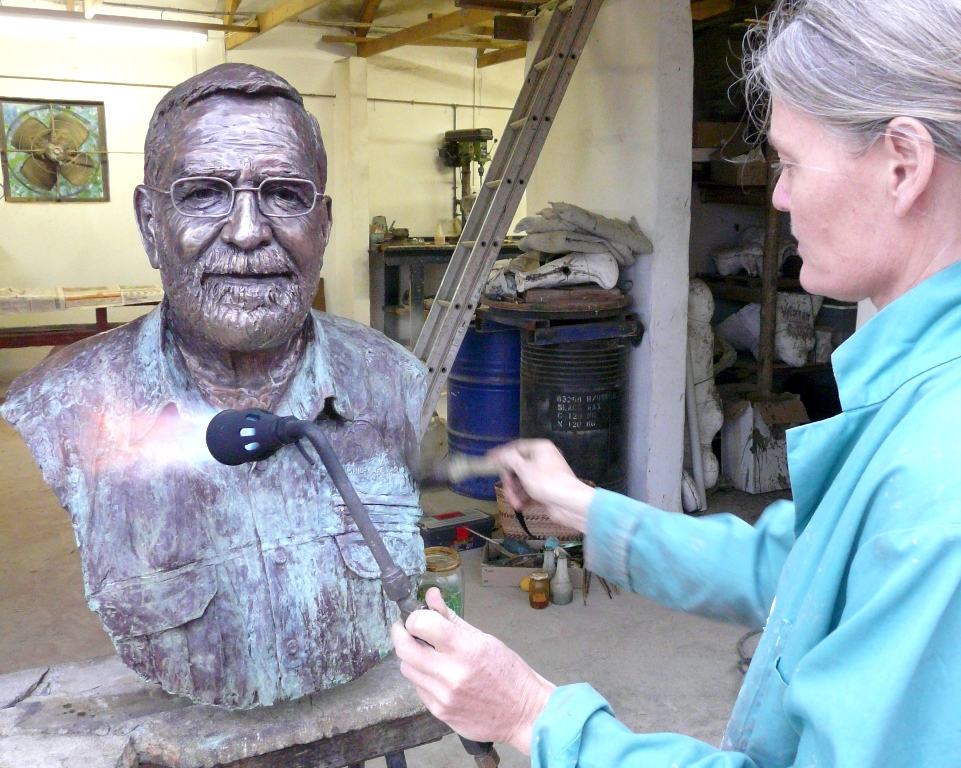

Lastly the patina is applied to the surface of the bronze. This can be many things but usually consists of chemicals which change the colour of the bronze to a reddish-brown, black or green. The sculpture is then sealed with wax polish to stop any further changes to the colour.

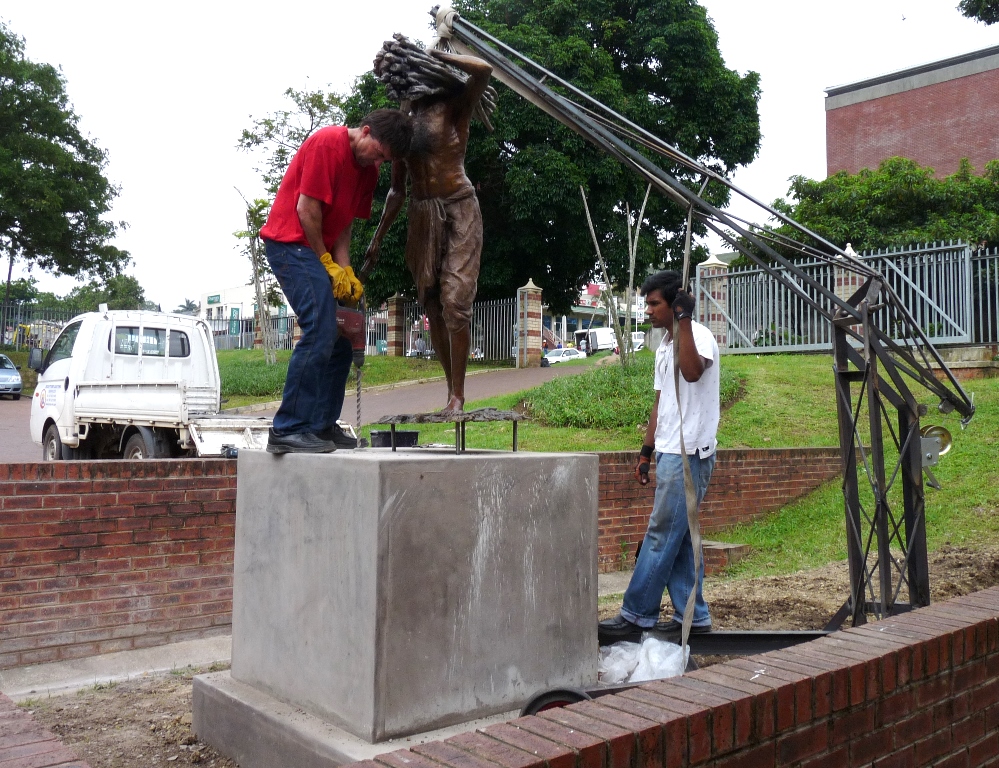

Delivery and Installation

The foundryman usually does the installation of monumental works. He may use the help of a crane depending on the size of the work.
